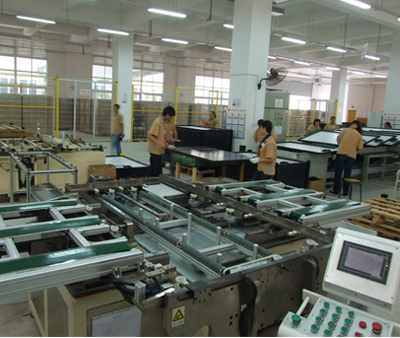

Framing machine G1

 Length of framed component: 1262mm~2000mm
 Width of framed component: 680mm~1100mm
 Diagonal accuracy of long-short sides of machine≤±1.5mm
 Dimensional accuracy of long-short sides after framing: +0.5mm，-1.5mm
 Corner dislocation after component framing: ≤0.5mm
 Extrusion length of acute angle after component framing:≤0.5mm
 Framing velocity: 45s/1 components
 The framing control system consists of MMI and PLC.
 The control panel is available for automatic control and manual control and framing parameters can be set via PLC.
 Control panel of framing machine is a moveable operating platform.

